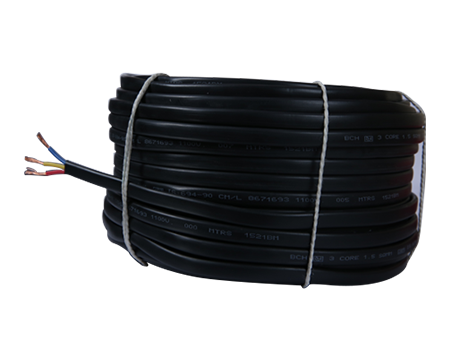

3 Core Flat Cable

Overview

Three Core Flat Cables with annealed bare & bunched copper conductor insulated & sheathed with virgin RoHS PVC for submersible pump motors for voltage grade 1100 V as per I.S. 694 : 2010.

XLPE Flat Cables – These Cables are suitable for heavy duty usage and areas having frequent supply undervoltage/overvoltage conditions.

Flat cables are made with the best material inputs and manufactured with on line measurement and monitoring of various parameters including dielectric strength, thereby ensuring a flawless, reliable and consistent product with repeatability in Quality.

Specification and Features

• Range 1.0 sq.mm-35 sq.mm
• Conforming to IS 694:2010
• Use of ETP copper conductor of 99.98% purity
• Thick sheathed PVC/XLPE insulated type cables also available
• Available in standard packing of 100M,500M,1000M lengths.

Important Notes.

In order to ensure optimum performance of Flat cables ,few points are to be kept in mind

• Depth of Submersible well
• The Voltage supply and fluctuations in the supply Voltage
• Actual HP of the Pump installed in the well
• The recommended size of the Cable as per Selection Chart of Pump Manufacturer
